Production Monitoring for Pakistani Factories

At the end of a shift, your production total may exist in three places: a machine display, a supervisor’s clipboard, and a spreadsheet in the office. If those numbers disagree, which one determines the next shift’s target? Production monitoring for Pakistani factories starts by capturing a signal from the machine and agreeing on what that signal means.

For a Karachi packaging line, a Faisalabad textile machine, or a small fabrication workshop, the first goal is usually practical: know how many units were made, when the machine was running, and when it stopped. A useful production tracking system in Pakistan should answer those questions before it promises a sophisticated plant-wide OEE score.

Short answer: Production monitoring records machine output, runtime and stoppages so a factory can compare actual production with its shift plan. Start with one machine and validate what each pulse counts. A basic counter suits repeatable motion; encoder-based counting helps when direction and resolution matter. Full overall equipment effectiveness (OEE) also needs quality data.

What a useful production monitoring system must capture

Factory output monitoring is more than a number climbing on a screen. Before buying hardware, write down the five fields your supervisor actually needs:

1. A defined unit: one finished piece, one machine cycle, one length increment, or one completed batch? A shaft revolution does not automatically equal a sellable unit.
2. A reliable count point: a sensor at the finished-product exit, a repeatable machine motion, or an existing encoder. Count at the place least likely to double count rework or empty cycles.
3. Planned time and shift boundaries: distinguish a scheduled break from an unplanned stop. Include the shift name and the clock used for handover.
4. Runtime and idle time: agree on the motion threshold and how long a pause must last before it becomes an idle event. Motion-derived runtime can include setup, jogging and empty cycles; it does not automatically mean productive time.
5. Quality and reasons where needed: a machine counter alone does not know which pieces passed inspection or why an operator stopped the line. Add first-pass good/reject data and an agreed reason-entry process where needed.

Therefore, compare a proposed dashboard against actual production records, not an attractive demo screen. The IoTize production monitoring solution is built around machine motion, runtime, idle time and output, with options to bring the readings into a dashboard or an existing system. The suitability of each signal and integration should be checked on your particular machine before a quote is finalized.

---

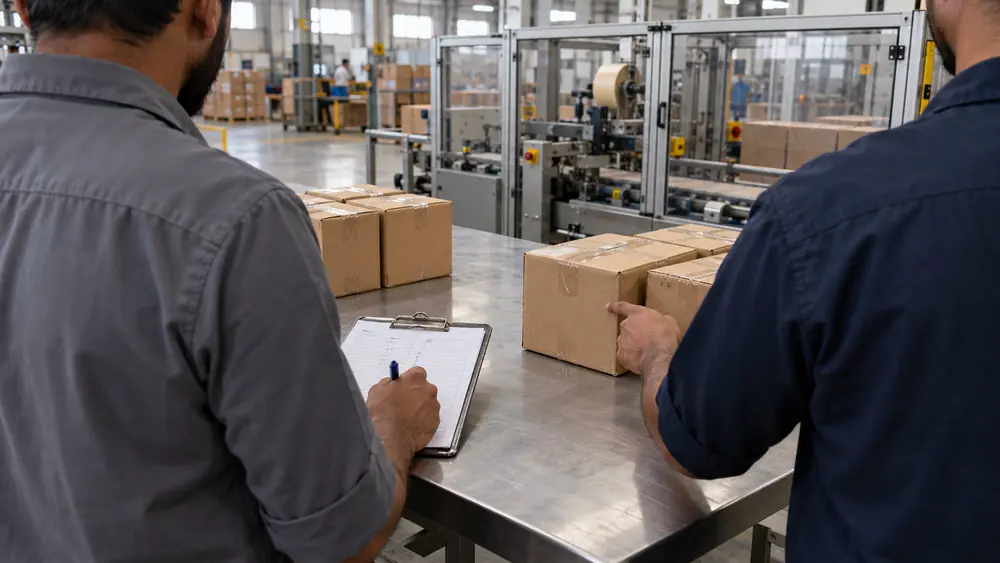

From clipboard totals to a trustworthy shift handover

A clipboard is useful for context. Operators can record a thread break, a material shortage, or a product changeover that a basic motion sensor cannot identify. However, a paper total entered at shift end cannot show precisely when output slowed or which short stops accumulated.

Consider an illustrative eight-hour shift on a packing machine. The operator reports 1,000 cartons. The counter sees 1,060 exit events. That difference is not proof that the operator was wrong: some events could be test runs, damaged cartons, or double triggers. Investigate the count point, confirm the definition of a carton, and reconcile samples by hour. A dashboard becomes useful when the team trusts the count and knows its exceptions.

At handover, use a simple view: shift target, total events, confirmed good units if available, runtime, idle intervals, and a short list of manually assigned stop reasons. That gives the incoming supervisor a concrete starting point. NIST’s manufacturing performance work likewise emphasizes defining and collecting operational data so performance measures have a useful frame of reference.

---

Can you monitor an old machine without replacing its controls?

Often, yes. For a legacy machine retrofit, first identify a repeatable physical event. An inductive proximity sensor can count a suitable metal flag or tooth as it passes the sensing face. A Hall sensor can count a compatible magnetic target. Each needs a distinct change at the sensing point; a painted mark on a uniform shaft is not enough. OMRON’s proximity sensor guide explains the different sensing principles.

For cartons or other non-metal products, a photoelectric sensor may provide a better finished-item count. However, that does not establish compatibility with an IoTize counter. Check the sensor’s output type, voltage, pulse duration and maximum rate against the selected counter input.

An incremental encoder is another option. A and B provide direction information; Z is usually a once-per-revolution reference. The effective resolution depends on the encoder’s pulses per revolution and the counter’s decoding mode. Encoder Products Company’s signal guide explains these distinctions.

Next, validate the conversion. If a shaft gives ten pulses per product, program and test that relationship across normal speed, slow speed, stoppages, and changeovers. If reverse motion occurs, a single-channel counter may count events in both directions. A/B direction data can help, but the process determines whether reverse motion subtracts progress or represents rework. Do not subtract finished products automatically or infer good units solely from revolutions per minute (RPM).

Finally, check the installation with the machine technician: sensor clearance, guard integrity, electrical noise, power and network reach. Before sharing an existing encoder signal, check its voltage, output type, receiver loading, maximum frequency and any need for buffering or isolation. Do not simply parallel wires into the controller. A retrofit should leave the machine’s safety system and controls intact. The production monitoring solution page explains the sensing and counting approach in more detail.

---

Which IoTize counter fits your factory?

The two counters solve different measurement problems. The product pages describe these capabilities; confirm final hardware configuration, installation scope, availability and delivery terms directly with IoTize for your proposed pilot.

Choose the affordable counter if a simple motion input can be calibrated to useful output and the pilot only needs a modest first step. Ask about the Enterprise counter if direction, encoder resolution, or the listed Modbus TCP path matters. In either case, specify whether the counter should report cycles, estimated units, or independently verified good units.

For broader visibility, you can assess the same machine from other angles. Predictive maintenance addresses condition signals such as vibration and temperature, while industrial energy monitoring addresses electrical use. Neither replaces an actual output count.

---

What should a one-machine pilot and quote include?

The production monitoring cost in Pakistan is more than a device price. An honest quote states what must be sensed, fitted, connected, tested and supported. Ask IoTize for a one-machine proposal with:

• A written counting definition: the product, event, pulses-per-unit rule, and how rejects or rework are handled.
• A site survey: sensor or encoder source, safe mounting location, power, network, panel space and machine access window.
• The exact scope: counter model, any additional sensor or encoder, mounting, cabling, installation, dashboard setup and integration.
• Data and ownership terms: where readings go, how long history remains available, who can export it, and what happens during a network outage.
• Acceptance test: manual sample counts at several speeds, shift rollover, stops and restarts, and reverse cycles where relevant.
• Commercial terms: currency and exchange basis, taxes, delivery, warranty, support, recurring charges and payment milestones.

For example, run a pilot across several representative shifts, including a changeover, and compare its hourly output against a witnessed tally. Agree in advance what discrepancy is acceptable for your process and how to correct it. Then decide whether to add more machines.

For a Pakistani factory, also put billing currency, any PKR conversion basis, taxes, delivery location and on-site support scope in writing. Test Wi-Fi at the actual machine if the selected configuration uses it. Include a controlled network-disconnection and power-restart test: confirm count retention, timestamps, resynchronization and any unrecorded intervals. These are acceptance requirements, not promises about a specific model.

To assess value, compare the full installed and recurring cost with a measurable loss you can act on, such as time spent reconciling shift totals or repeat stoppages at a bottleneck. Avoid treating all idle minutes as recoverable production or multiplying them by sales revenue. Use realistic incremental good output and contribution margin, and label any estimate as a forecast.

---

Make the first count useful, then scale

The purchase decision is simple when the measurement question is precise. Pick one bottleneck machine, define a finished unit, test the signal, and give the shift supervisor a dashboard that can be checked against reality. That is a credible path from clipboard counting to shop floor monitoring in Pakistan.

Request a one-machine production monitoring quote. Send your machine make/model, the output you want to count, normal operating speed, available sensor or encoder details, factory location, and a photo of the proposed sensing point. Ask for a scope covering hardware, installation, dashboard access, acceptance testing and support.

For a repeatable motion signal, review the affordable production counter. For encoder direction or finer resolution, review the Enterprise production counter and use its Add To Quote option. IoTize should confirm fit, availability and delivery terms before you commit.
