OCPP Integration and EV Charging Software in Pakistan

In short: OCPP is the open protocol that lets a compliant EV charger communicate with compatible EV charging software. It helps operators avoid hardware lock-in, manage mixed charger brands, and keep control of their data and credentials. Most Pakistani networks will start with OCPP 1.6J, while the management platform should also support OCPP 2.0.1 for newer hardware.

Pakistan is building its EV charging network one licence and one site at a time. However, chargers are only the visible endpoints. The software behind them decides whether each site can authorise users, collect payments, report faults, and stay manageable as the network grows.

This guide explains OCPP integration in plain language for charge point operators, charger makers and sellers, fleet depots, malls, fuel stations, and housing societies. It also shows how IoTize’s white label EV charging software can run compliant chargers under your own brand.

---

Why does Pakistan need EV charging software now?

Because chargers are arriving faster than the systems needed to operate them. Pakistan’s New Energy Vehicle Policy 2025 to 2030 targets 30 percent of new vehicle sales as electric by 2030 and plans 3,000 charging stations nationwide. It also says EVs on Pakistani roads rose from 567 in 2021 to more than 80,000 by June 2025, led mainly by two-wheelers and three-wheelers, according to Arab News.

In addition, the policy set a national commercial charging tariff of Rs 39.7 per kWh and requires oil marketing companies to convert 10 percent of their filling stations into EV charging sites. Therefore, policy is shaping the demand curve alongside early adopters.

However, a licence and a tariff only put a charger on the ground. The moment an operator owns more than one charger, software must authorise users, meter energy, collect payments, monitor uptime, push firmware, and produce reports. The charging software becomes the operating system of the business.

---

What does EV charging software actually do?

EV charging software turns a box of hardware into a managed service. Operators often call the backend a Charge Point Management System (CPMS) or Charging Station Management System (CSMS). The names differ, but both describe the software where an operator manages chargers day to day.

• Authorisation and access: Decide who can charge through an app, RFID card, QR code, or account.
• Sessions and billing: Start and stop charging, meter energy, apply a tariff, collect payment, and produce a receipt.
• Live monitoring: View every connector as available, charging, faulted, or offline.
• Remote operations: Reset a charger, run diagnostics, unlock a connector, or change settings without a site visit.
• Firmware management: Push approved updates across a charger fleet.
• Smart charging: Limit or schedule power to protect a site’s sanctioned load and shift demand away from peaks.
• Reporting: Track utilisation, revenue, energy, uptime, and faults by charger and site.

The question is not whether a commercial network needs management software. It does. Instead, the key question is how that software communicates with different charger brands. That is where OCPP comes in.

---

What is OCPP?

OCPP stands for Open Charge Point Protocol. It is the open, vendor-neutral language that an EV charger uses to communicate with charging management software. The Open Charge Alliance describes OCPP as the global open protocol between charging stations and charging management systems, designed to support interoperable, scalable infrastructure with less dependence on proprietary systems.

The protocol started in 2009 through ElaadNL, a Dutch non-profit founded by distribution system operators. It emerged because hardware brands used separate private communication methods. Today, the Open Charge Alliance oversees OCPP with input from charger makers, software providers, and network operators.

As a result, compatible hardware and software can come from different suppliers. For a Pakistani operator, that flexibility matters because the charger brands available this year may not be the brands available next year.

---

How does OCPP integration work?

OCPP integration connects an EV charger to a charge point management system so both sides can exchange messages about authorisation, sessions, metering, faults, and remote control. In practice, the charger opens a persistent WebSocket connection to the backend and keeps exchanging structured messages while it remains online.

Crucially, OCPP 1.6 deployments sometimes use an unencrypted `ws://` connection. Operators should insist on TLS through `wss://` so the link between charger and backend stays encrypted.

First, the charger announces itself and sends regular heartbeats. Next, the backend checks whether a driver can start a session. Then, the charger reports energy readings while the session runs. Finally, the backend closes the session, calculates billing, and stores the record.

OCPP 2.0.1 changes some message names. For example, it combines transaction activity into a `TransactionEvent` message with Started, Updated, or Ended states. However, the overall conversation still follows the same operating logic.

---

OCPP 1.6 vs 2.0.1 vs 2.1: which version do you need?

The buying decision turns on compatibility. OCPP 1.6 and OCPP 2.0.1 are not compatible, according to the Open Charge Alliance. Therefore, a 1.6 charger cannot simply communicate with a backend that supports only 2.0.1.

Most Pakistani operators can start with OCPP 1.6J because many affordable chargers support it. However, the management platform should support both OCPP 1.6J and OCPP 2.0.1 so newer hardware can join the same network later. OCPP 2.1 builds on 2.0.1 and keeps its application logic compatible, but most local operators can treat it as a future requirement for now.

---

Why does OCPP matter for a Pakistani operator?

• Avoid vendor lock-in: An open connection lets you change management software or add another compliant hardware brand without replacing the whole network.
• Match hardware to local supply: Charger availability can change. OCPP gives operators more freedom to buy quality hardware from different sources.
• Keep operational control: Your business should hold its data, payment relationship, and charger credentials.
• Prepare for regulation and audits: Open interfaces make reporting, integration, and future compliance work easier than a closed black box.

---

What is the difference between OCPP and OCPI?

Put simply, OCPP connects hardware to software, while OCPI connects charging businesses to one another. Therefore, roaming is not an OCPP feature. A mature operator may eventually use both protocols, but most new Pakistani networks need OCPP first.

---

What does OCPP not guarantee?

OCPP does not guarantee that every charger will work perfectly with every backend on the first attempt. Instead, real interoperability depends on matching versions, implemented features, secure configuration, and commissioning tests.

• Versions must match: OCPP 1.6 and 2.0.1 cannot communicate directly.
• Required functions must exist: A charger may support OCPP but omit an optional smart-charging or billing feature you need.
• Certification is a baseline: Ask for Open Charge Alliance certification, then test the real charger and backend together.
• Credentials must stay under your control: Whoever controls the connection credentials controls where the charger reports.
• Offline behaviour must be tested: Confirm that a charger can continue an authorised session, queue records, and resynchronise after connectivity returns.

Consequently, operators should commission one real charger before buying a fleet. Test authorisation, metering, billing, fault reporting, remote reset, firmware, smart charging, and recovery after an internet outage.

---

How do you choose EV charging software in Pakistan?

1. Confirm OCPP versions: Require OCPP 1.6J at minimum and preferably OCPP 2.0.1 support as well.
2. Test your actual charger: Commission the hardware model and every function your business depends on.
3. Choose deployment control: Ask whether the platform can run as managed SaaS, private cloud, or on-premises when needed.
4. Protect data ownership: Make sure session, user, energy, and reporting data remain exportable.
5. Check Pakistani billing fit: Confirm local tariffs, invoices, and payment gateway integration.
6. Keep your own brand: Decide whether drivers will see your name or the software vendor’s network.
7. Demand useful support: Confirm response times, timezone coverage, and who handles a live charger fault.
8. Plan for growth: The platform should scale from a pilot to a larger network without a rebuild.

For a practical walkthrough of charger selection, tariffs, and first-site planning, download the free IoTize EV Charging Operator’s Guide.

---

What is white label EV charging software?

White label EV charging software runs under the operator’s brand instead of the platform provider’s brand. You own or source the charger, while the software manages the service. Therefore, the operator keeps the customer relationship, pricing, data, and business identity.

IoTize’s platform supports OCPP 1.6 and 2.0.1 chargers across AC and DC hardware. It combines a branded driver experience, operator dashboard, role-limited host access, local payment integration, and flexible deployment. Most importantly, the platform keeps the network hardware-agnostic so operators can mix compatible charger brands.

• Branded driver app: Help drivers find an available charger, navigate, start a session, monitor progress, and pay under your name.

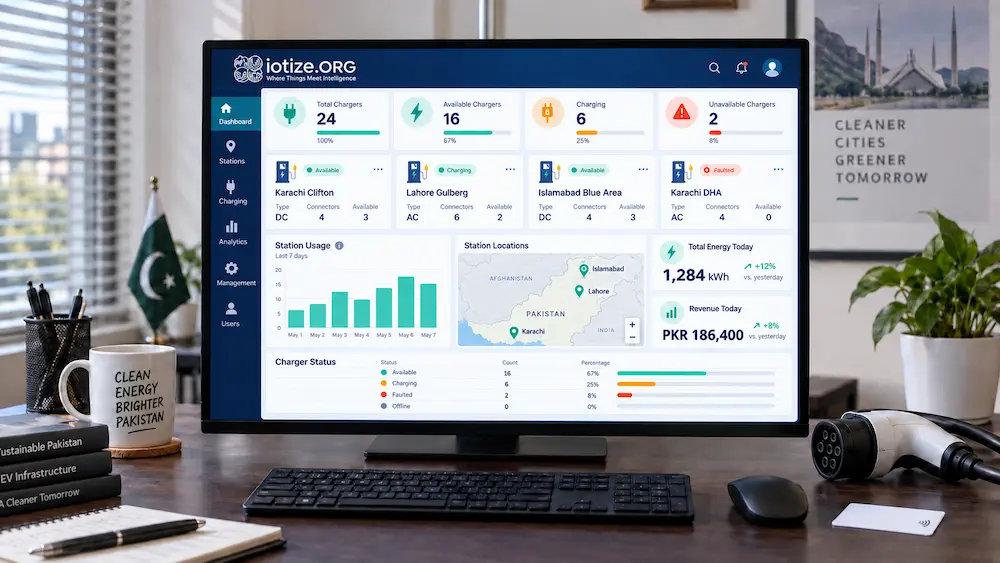

• Operator dashboard: Watch charger status, pricing, sessions, energy, revenue, uptime, and faults across sites.
• Host access: Give each mall, forecourt, workplace, or housing society a limited view of its own chargers and results.
• Open charger support: Run mixed OCPP 1.6 and 2.0.1 hardware from one platform.
• Local payment integration: Let charging revenue settle through your own gateway account.
• Deployment choice: Use managed SaaS as standard, with private cloud or on-premises options available for suitable projects.

---

The bottom line

EV charging software is part of the core business, not an optional add-on. OCPP keeps that business flexible by connecting chargers to management software through an open protocol. Therefore, operators can mix compatible hardware, manage sites centrally, and reduce dependence on one supplier.

Start with the OCPP version your hardware supports today, but choose software that can also support the next generation of chargers. Above all, keep control of your data, payments, branding, and charger credentials.
