IoT Smart Energy Monitoring Sensor | Single-Phase | HTTP, MQTT, Modbus TCP

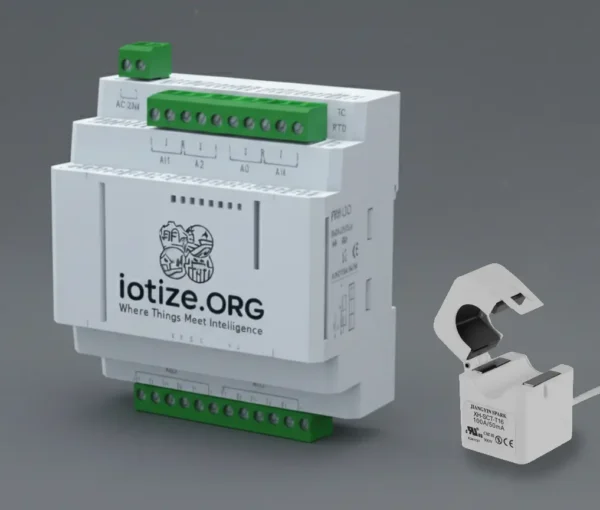

The IoT Smart Energy Monitoring Sensor (Single-Phase) is built for industries and businesses that require accurate, reliable energy monitoring of machines and electrical loads.

Designed for mission-critical operations, this rugged sensor goes beyond basic metering by offering runtime tracking, idle time detection, and predictive maintenance indicators.

With support for HTTP, MQTT, and Modbus TCP, it integrates easily into SCADA systems, IoT dashboards, and enterprise cloud platforms. Its industrial-grade enclosure makes it suitable for factories, hospitals, marine systems, and smart city applications.

Key Features:

• Single-Phase Monitoring – Track voltage, current, power, energy, power factor, and frequency.
• Runtime & Idle Tracking – Measure machine operating hours and idle energy waste.
• Predictive Maintenance – Detect overloads, abnormal current draw, or efficiency loss.
• Multiple Connectivity Options – HTTP, MQTT, Modbus TCP (Wi-Fi/Ethernet).
• Industrial-Grade Build – Rugged DIN-rail design for reliable deployment.

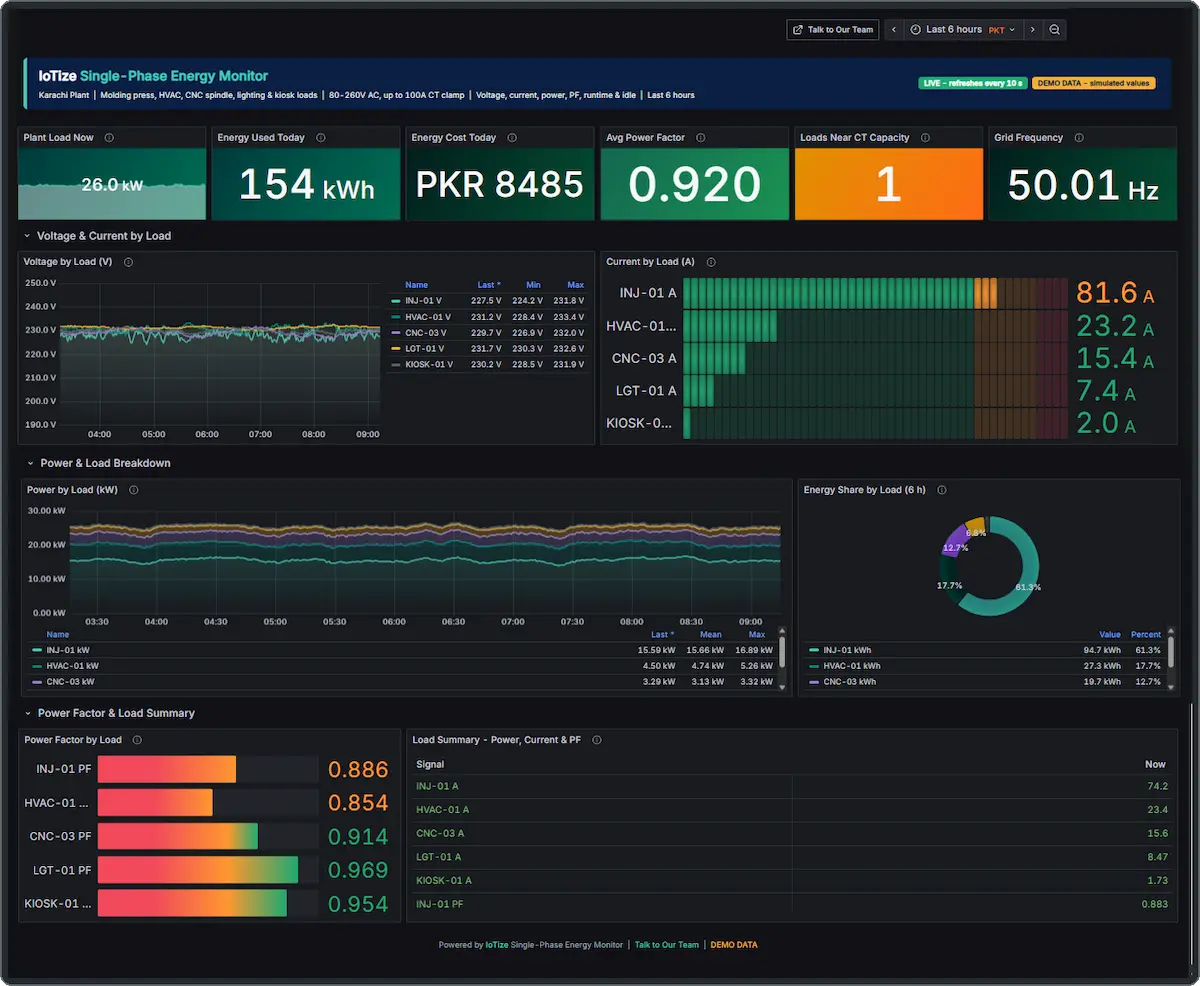

• Cloud & SCADA Ready – Works with enterprise dashboards and monitoring systems.

Technical Specifications

Parameter	Value/Range
Input Voltage Range	80 – 260V AC (Single Phase)
Current Measurement	Up to 100A (via CT clamp)
Power Measurement	0.1 – 23kW
Energy Measurement	Up to 9999 kWh
Power Factor Accuracy	± 0.5%
Frequency Range	45–65 Hz
Connectivity	HTTP, MQTT, Modbus TCP (Ethernet / Wi-Fi)
Data Output	JSON / MQTT / Modbus TCP
Operating Temp.	-20°C to 70°C
Enclosure	Industrial DIN-rail ABS/Metal

Applications in Detail

• Industrial Machines – Textile, embroidery, CNC, and injection molding monitoring.
• Motors & Pumps – Detect idle running, overloads, and energy inefficiencies.
• Medical Equipment – Track uptime and power quality for critical devices.
• Smart Buildings – Monitor HVAC, lighting, and energy-intensive systems.
• Marine Systems – Measure onboard power usage of single-phase pumps and equipment.
• Smart City Solutions – Use in kiosks, signage, and small-scale public infrastructure.
